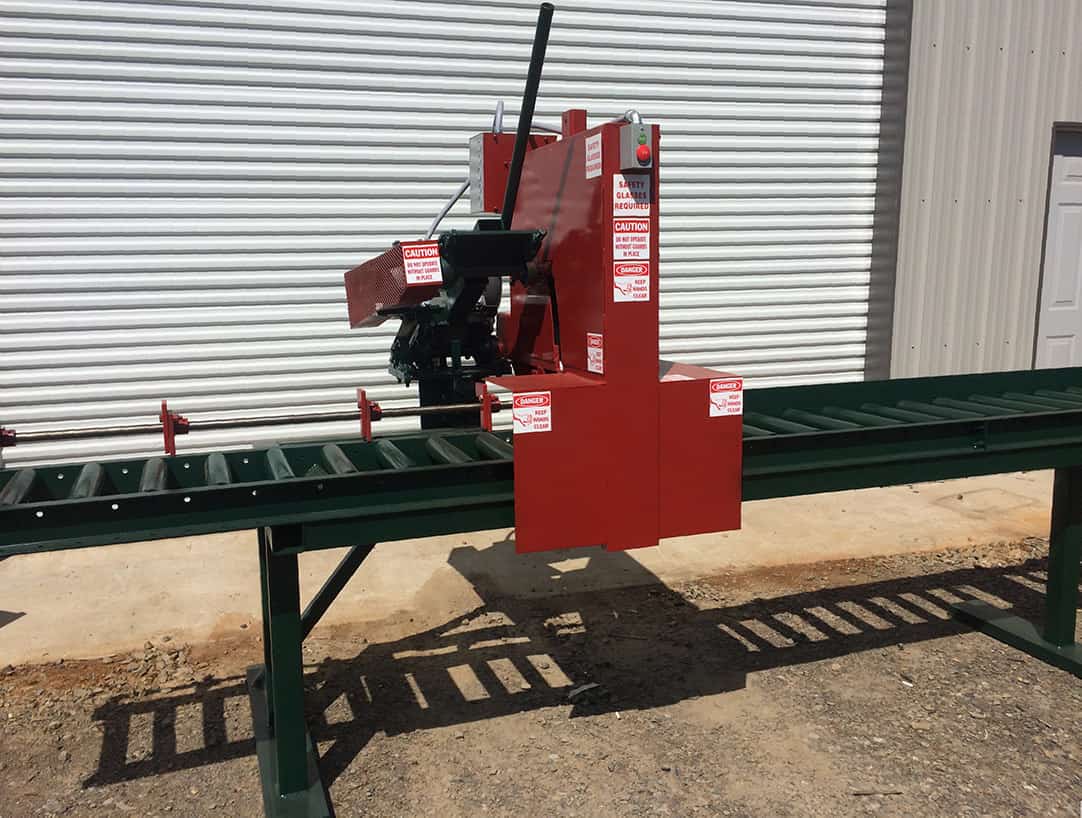

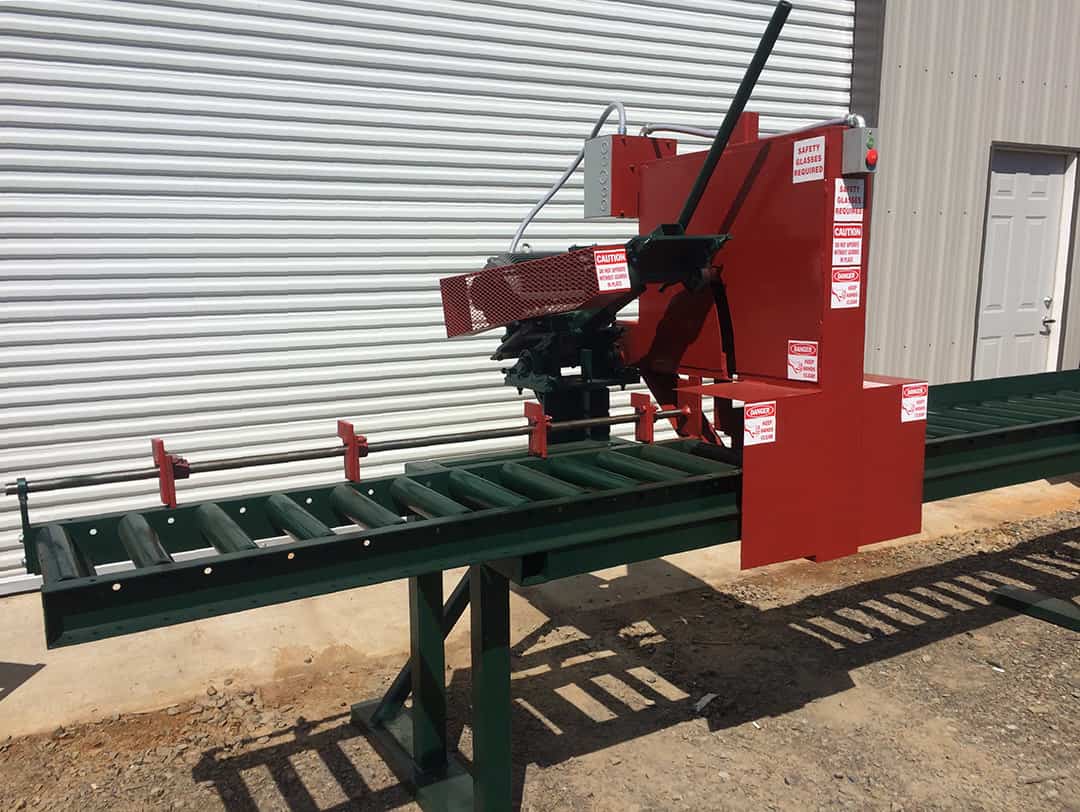

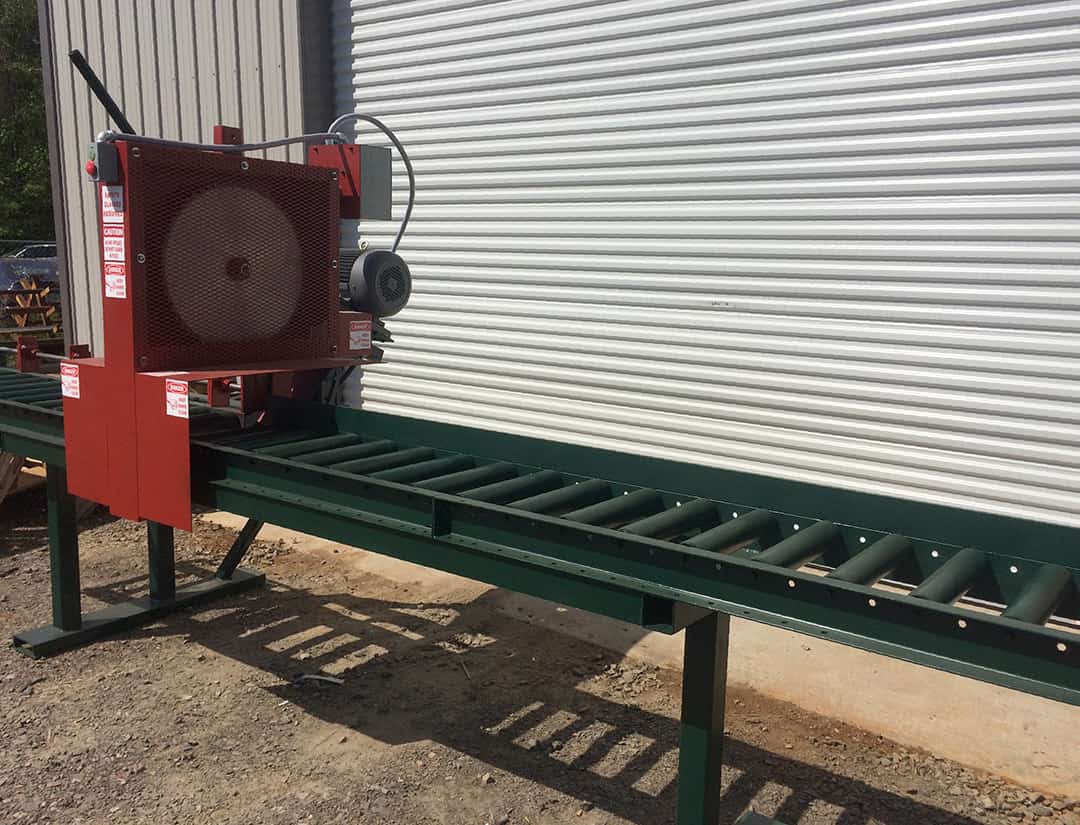

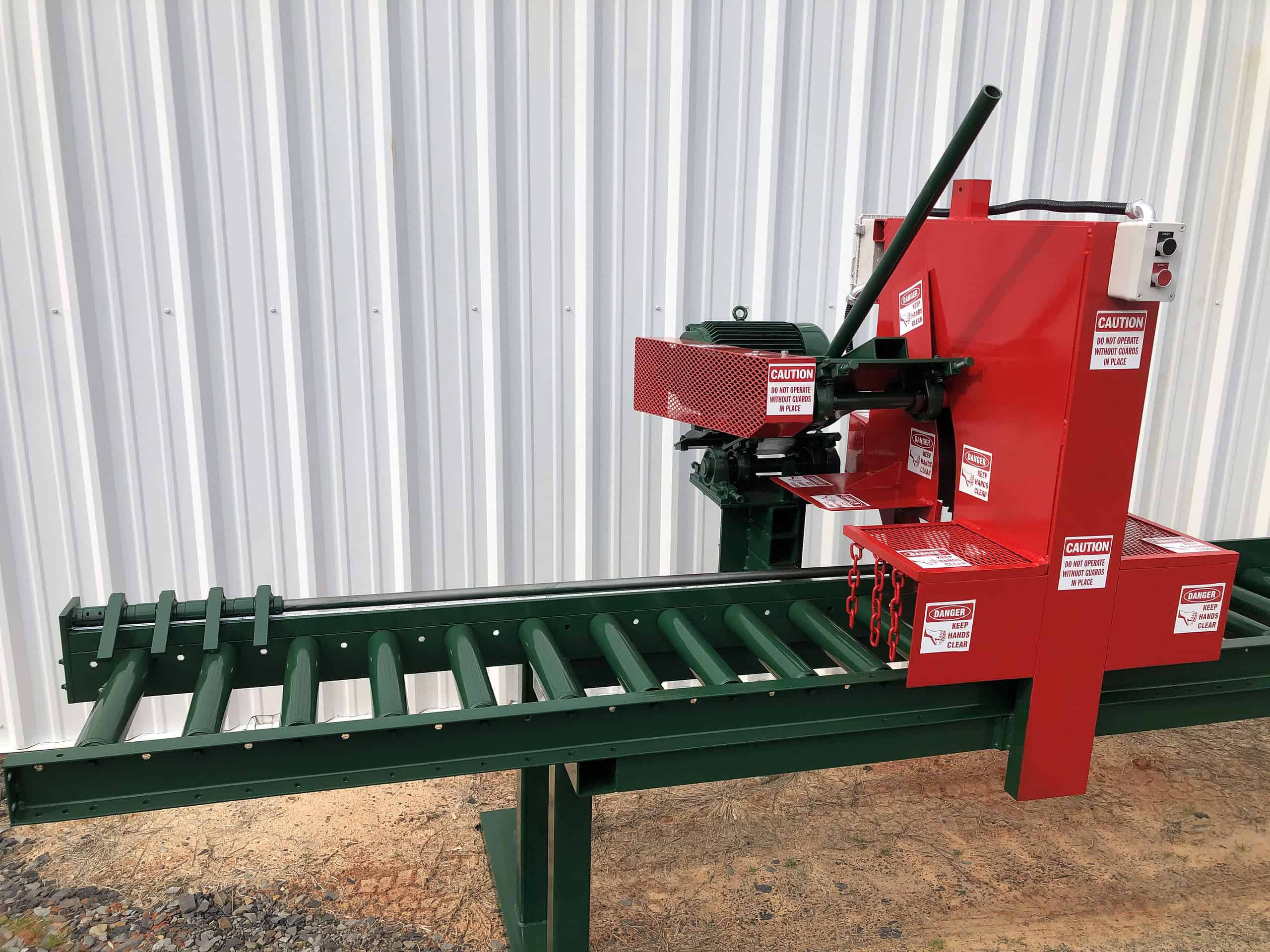

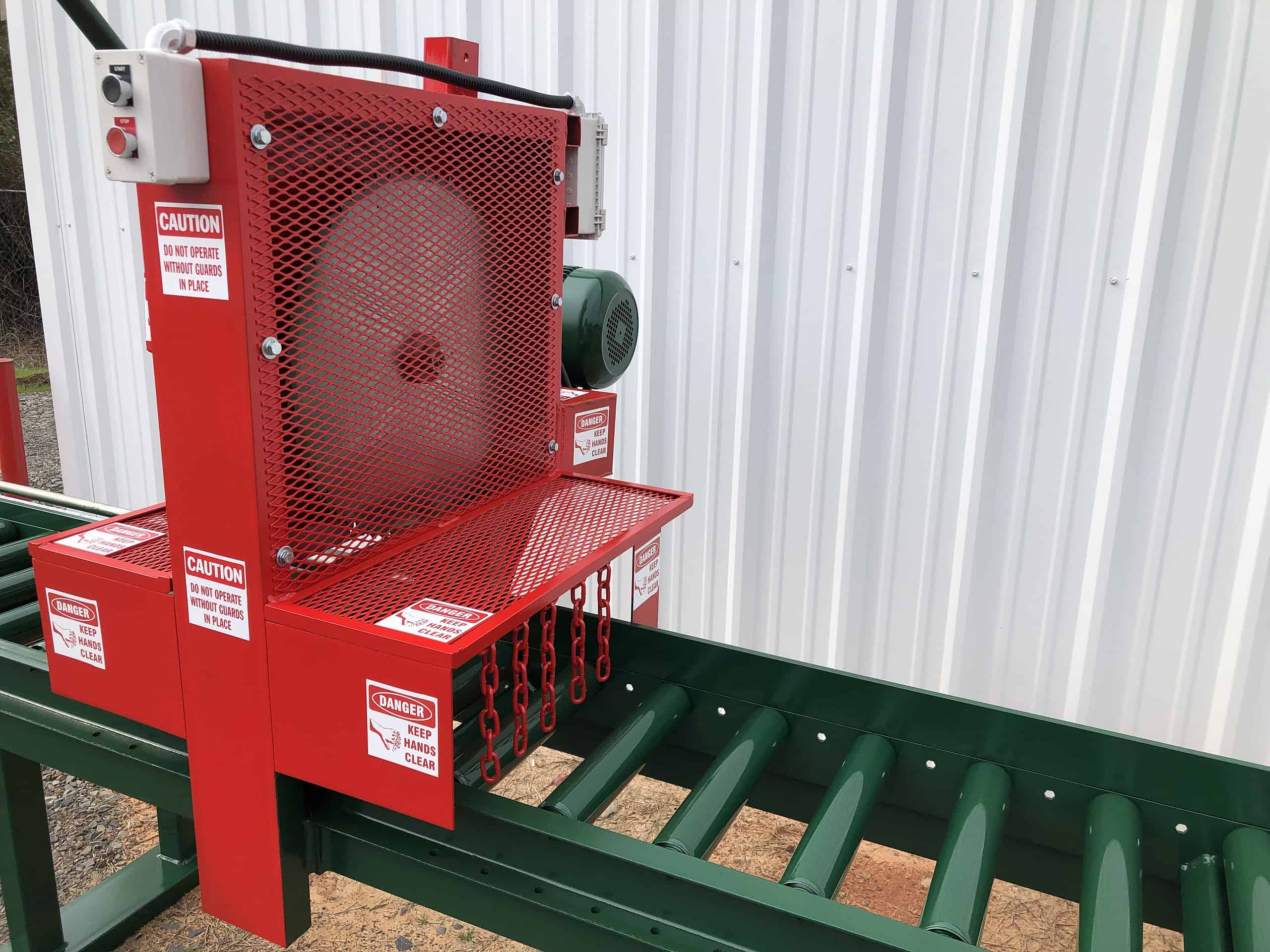

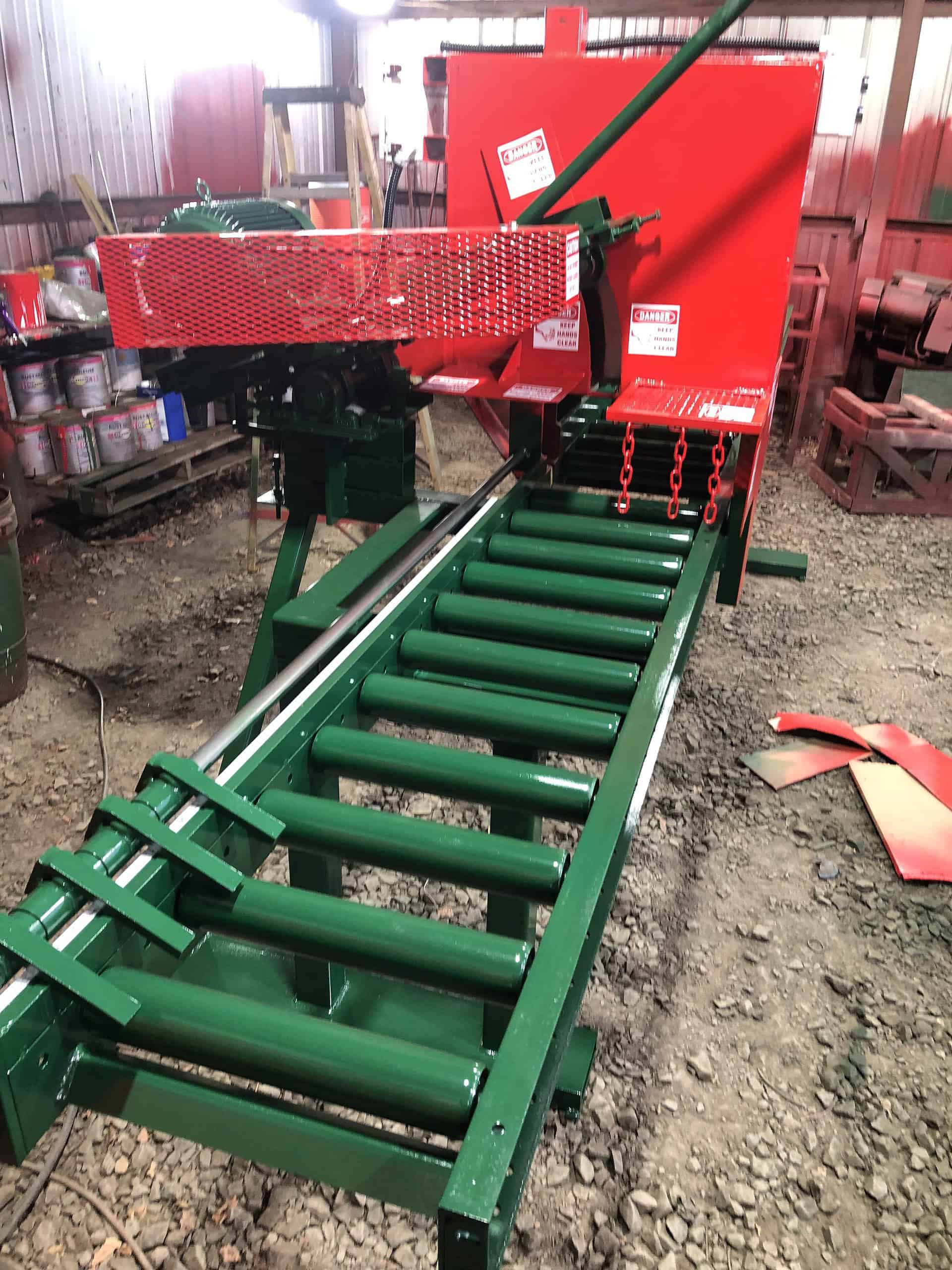

Standard Chop Saw
Manual chop saw with 22" blade, up to 6" × 12" capacity, and 15' of dead rollers. The baseline Morgan saw.
Blade Size
22"
Material Capacity
Up to 6" × 12"
Frame
3×3 square tubing
Motor Options
10 HP 3-phase / single-phase / gas
Cutting Stops
4 adjustable stops
Roller Bed
15' dead rollers standard, can be extended
How It Works
Step 1
Load material onto the 15' roller bed. The rollers feed stock toward the blade at a controlled pace.
Step 2

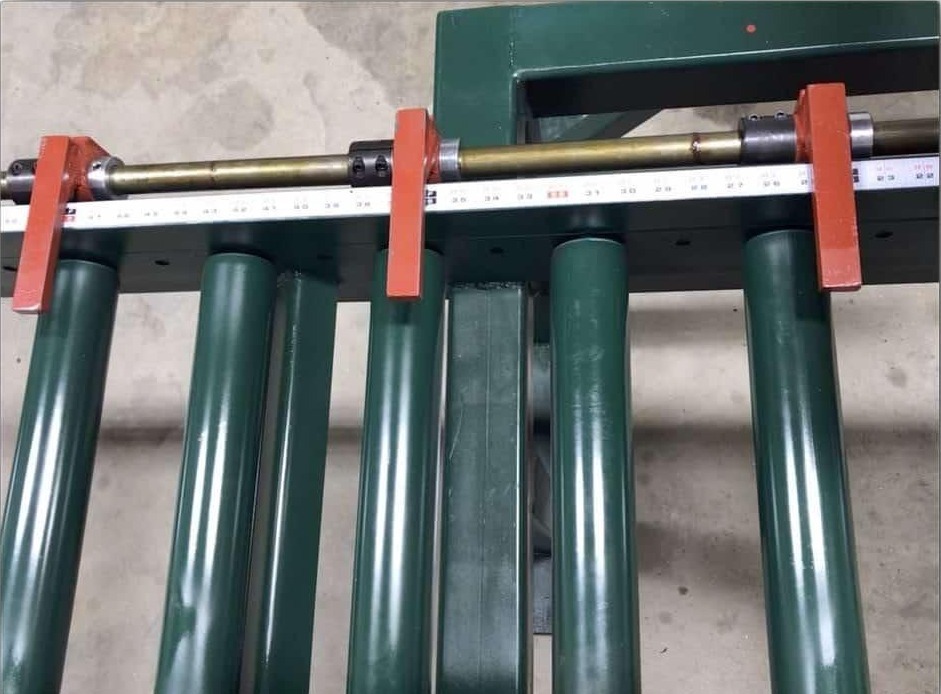

Set the adjustable stop to your target cut length. Four adjustable stops let you switch between lengths without re-measuring.
Step 3

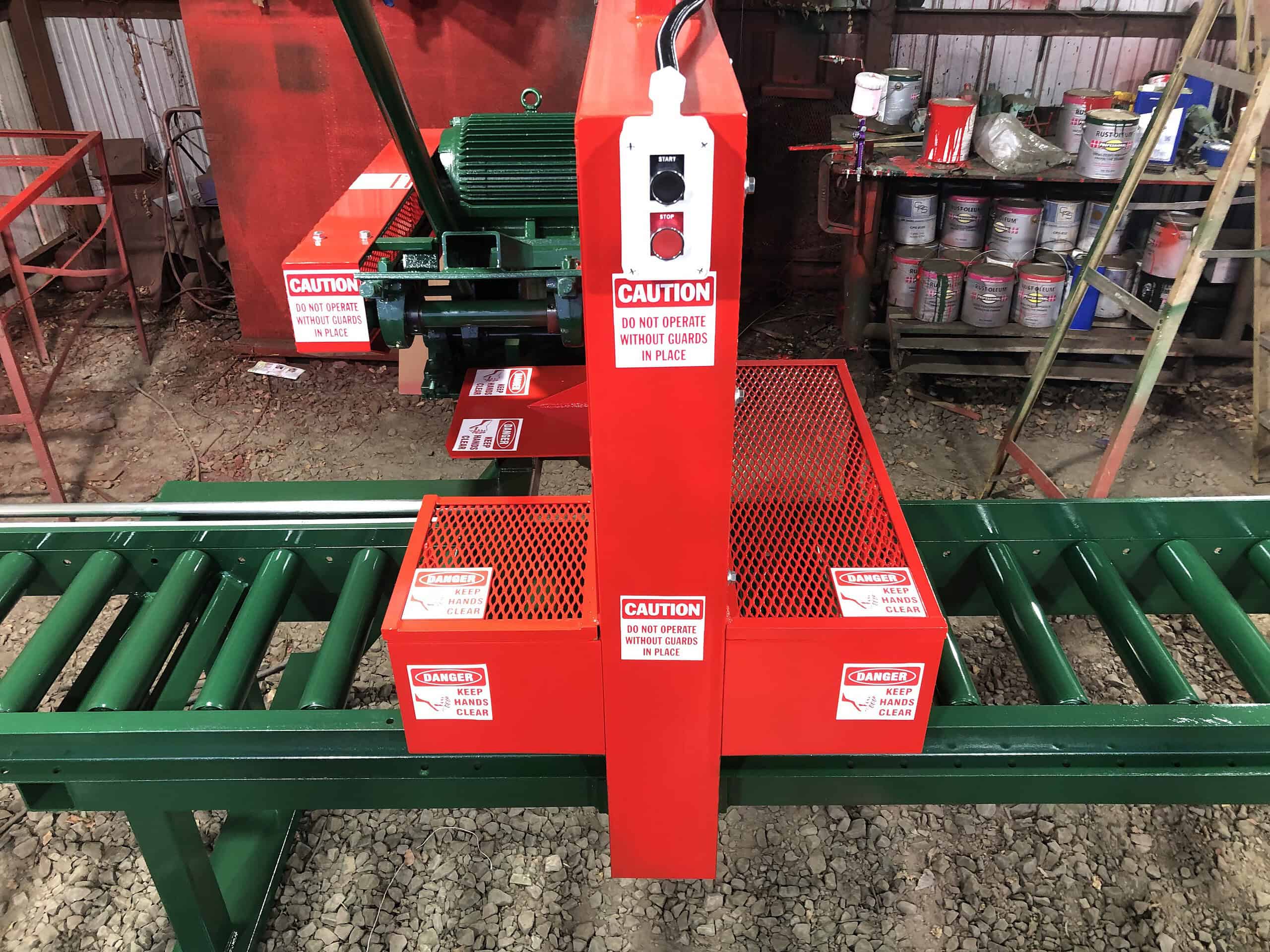

Pull the blade through the material. The 22" blade cuts up to 6" × 12" stock in a single pass.
Step 4
The cut piece moves down the outfeed side. The rollers handle the heavy lifting.
Product Details
The Standard Chop Saw is the baseline Morgan machine. 3×3 square tubing frame, 22" blade, 15 feet of dead rollers. Manual operation with four adjustable stops.
The 22" blade cuts stock up to 6"×12" in a single pass. Four adjustable stops let you switch between cut lengths without re-measuring. Available with 10 HP 3-phase, single-phase, or gas motor.
Forklift-ready for repositioning on the shop floor. Can be built to custom lengths and heights to match your production line.
Options & Accessories

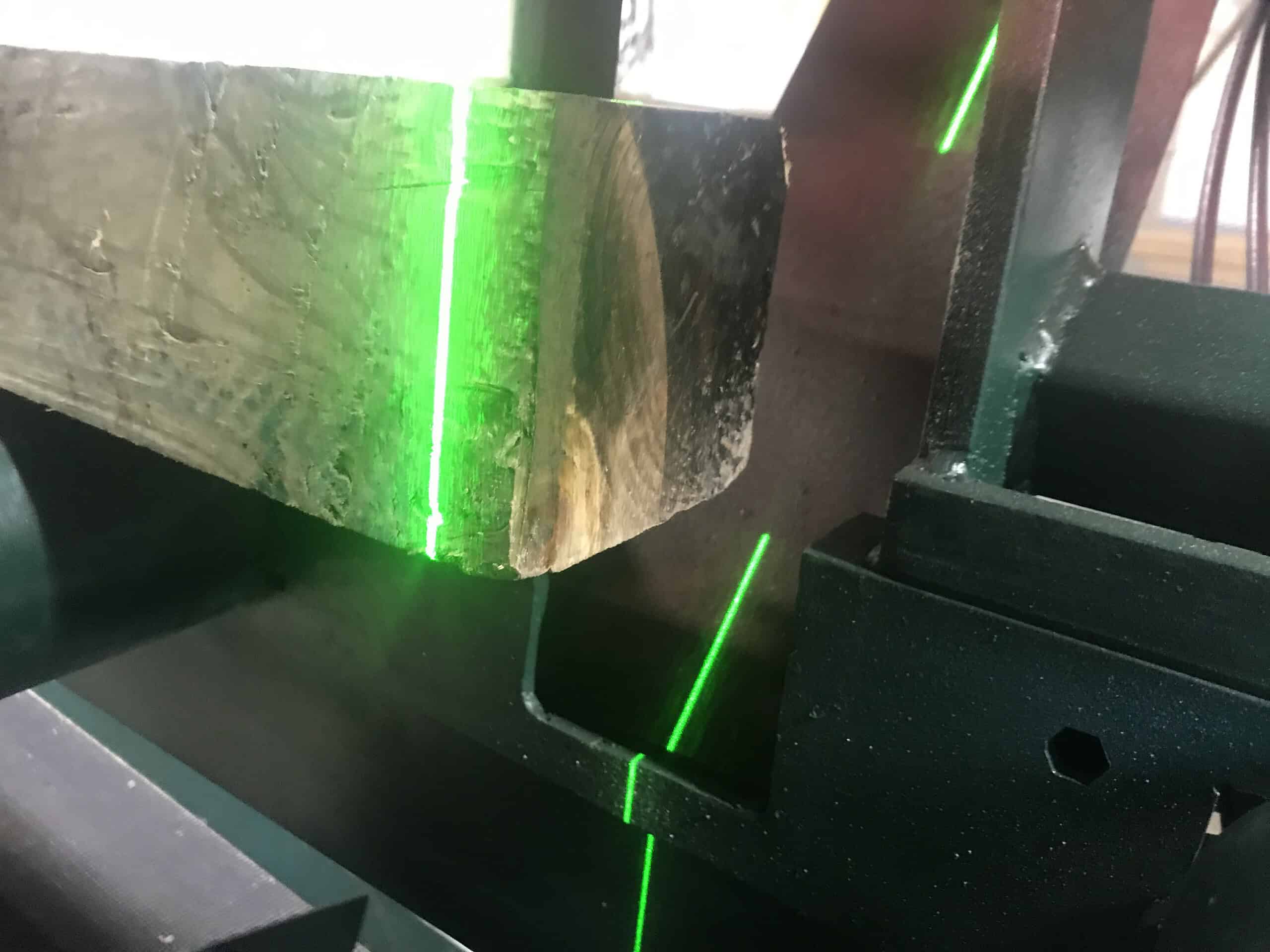

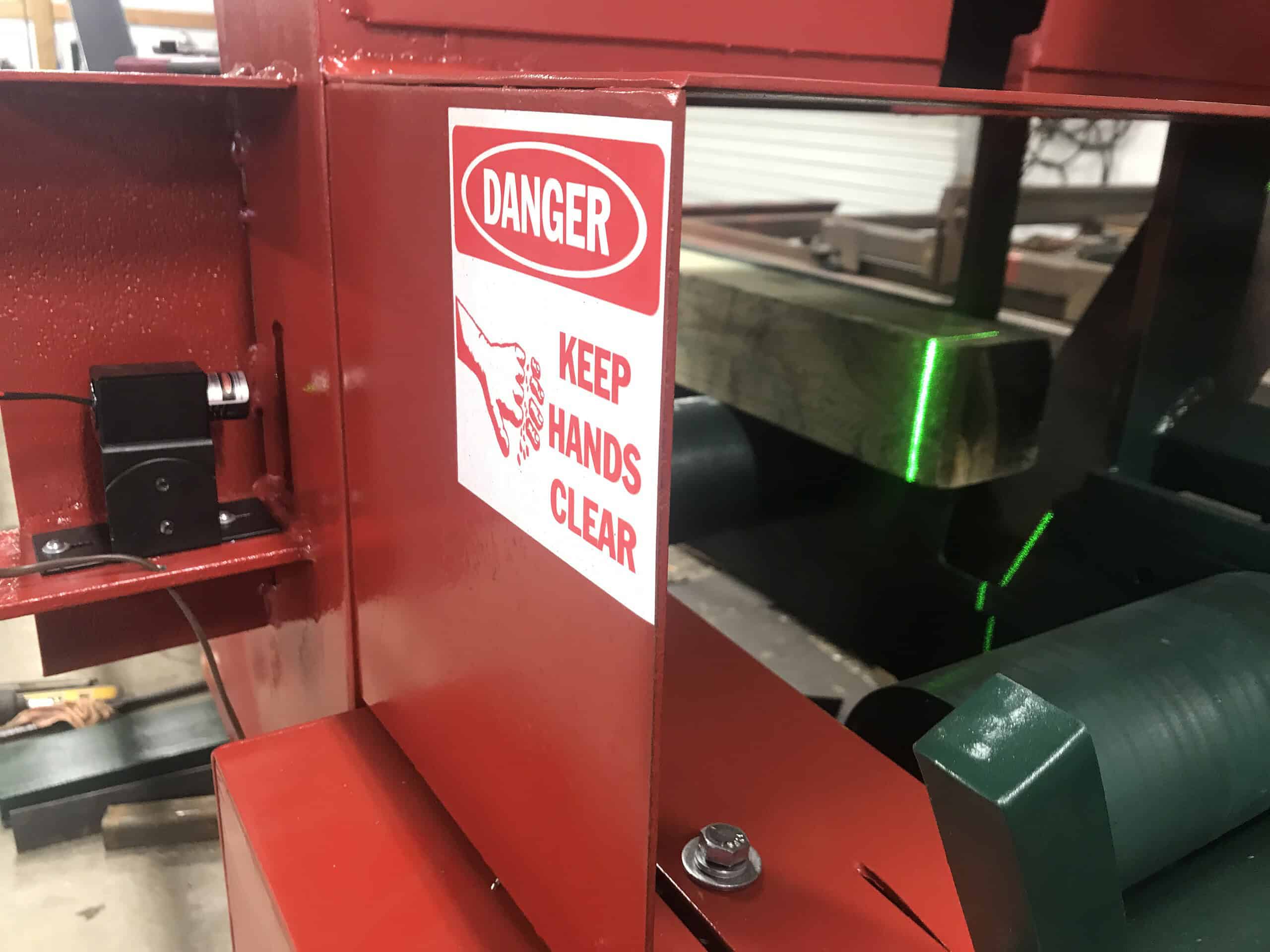

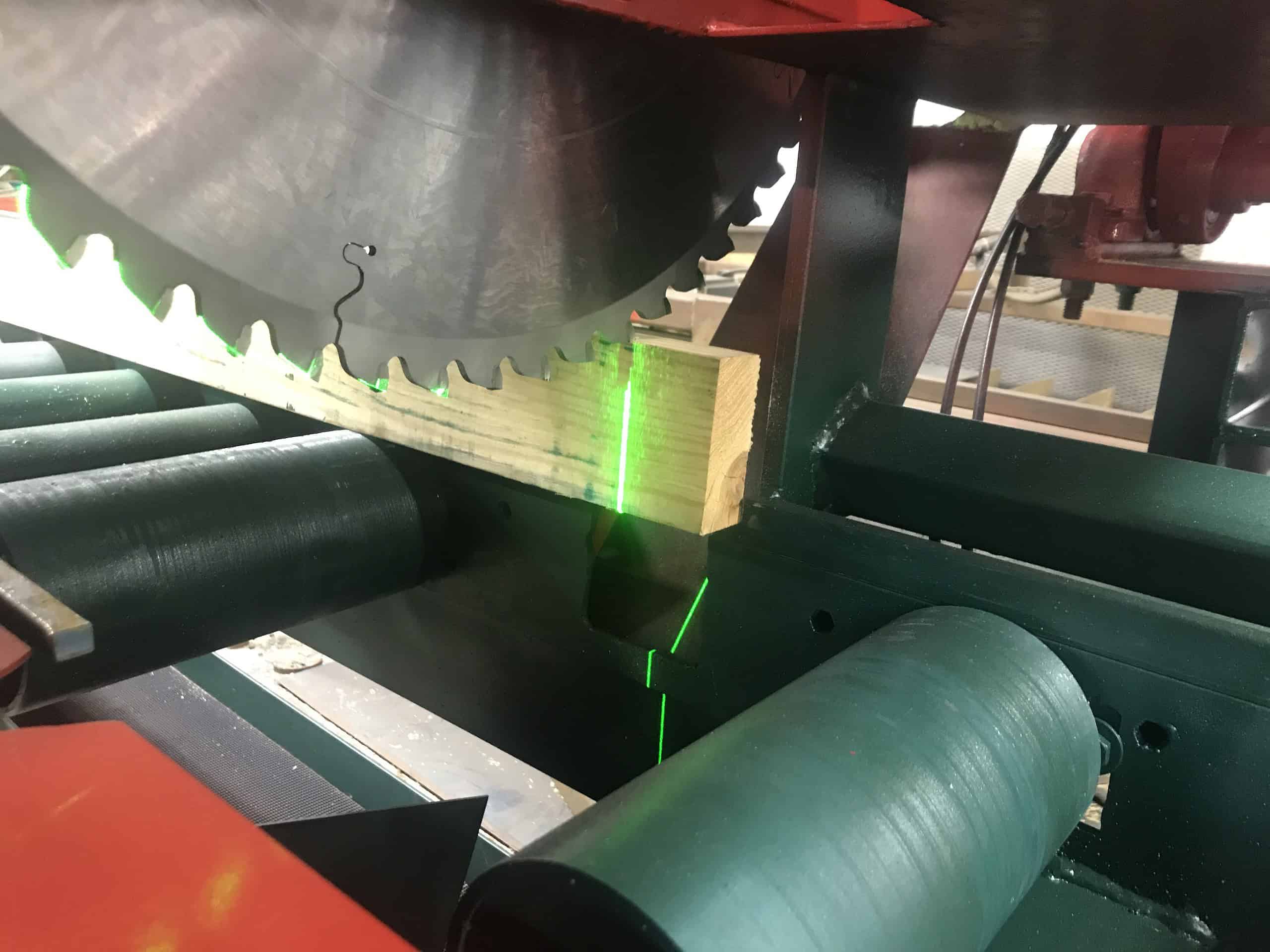

Optional Laser Cut Line Marker
Projects a visible cut line onto the material so the operator can verify position before pulling the blade.

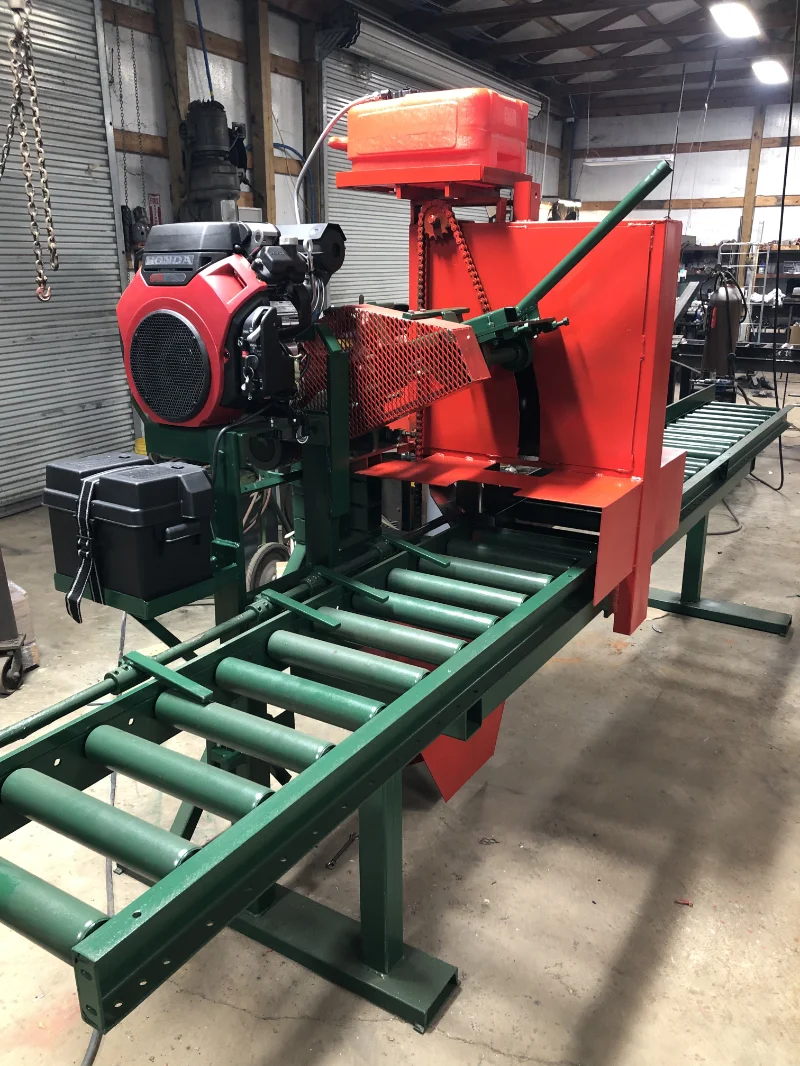

Gas-Powered Model
Standard gas engine for locations without three-phase power or where portable operation is needed.
5' - 20' Powered Extension
Adds powered roller bed with legs, dead rollers, backstop, chain, sprockets, and chain guards. Available in 5' to 20' lengths. Contact us for pricing.
Warning Beacon
Alerts others when the saw is running.
Built to Spec
This chop saw integrates with existing systems and can be built to your specifications. Custom lengths, heights, and conveyor configurations available.
Who Uses This Saw
Pallet plants cutting stringers, deck boards, and blocks at mixed lengths in moderate production volumes.
Sawmills needing a manual chop saw for cants, slabs & ties, or custom-length cuts alongside primary processing equipment.
Crate operations running varied cut lengths where four adjustable stops cover the most common sizes without constant re-setup.
If your volume exceeds what a single operator can feed manually, consider the Fully Automated Chop Saw.
