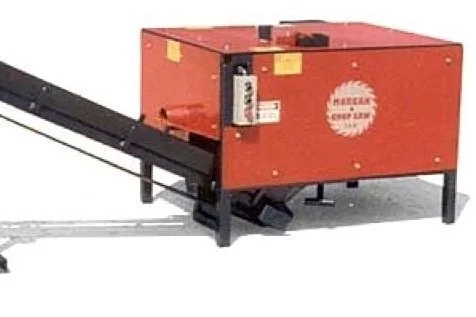

Block Saw
High-speed block cutting saw producing 1,500-1,600 blocks per hour. One operator, continuous output.
Key Specs
Blade Size
22"
Motor
10 HP 3-phase
Cut Capacity
4" × 6"
Throughput
1,500-1,600/hr
Outfeed
Powered belt
Table Height
Low profile
How It Works
- 1 Operator loads material onto the low-profile table. One person runs the entire saw.
- 2 The 22" blade cuts blocks to length. Capacity up to 4" × 6" stock, up to 12" long.
- 3 The continuously powered outfeed belt moves finished blocks to a collection point. No manual removal needed.
Custom Configurations
The Block Saw can be built to handle specific cutting requirements:
- Cut two 4×4s at once
- Cut four boards at a time
- Adjustable chute sized for different block dimensions
Who Uses This Saw
- Pallet plants producing blocks for block pallets at volume
- Sawmills cutting cants to length for further processing
Watch in Action

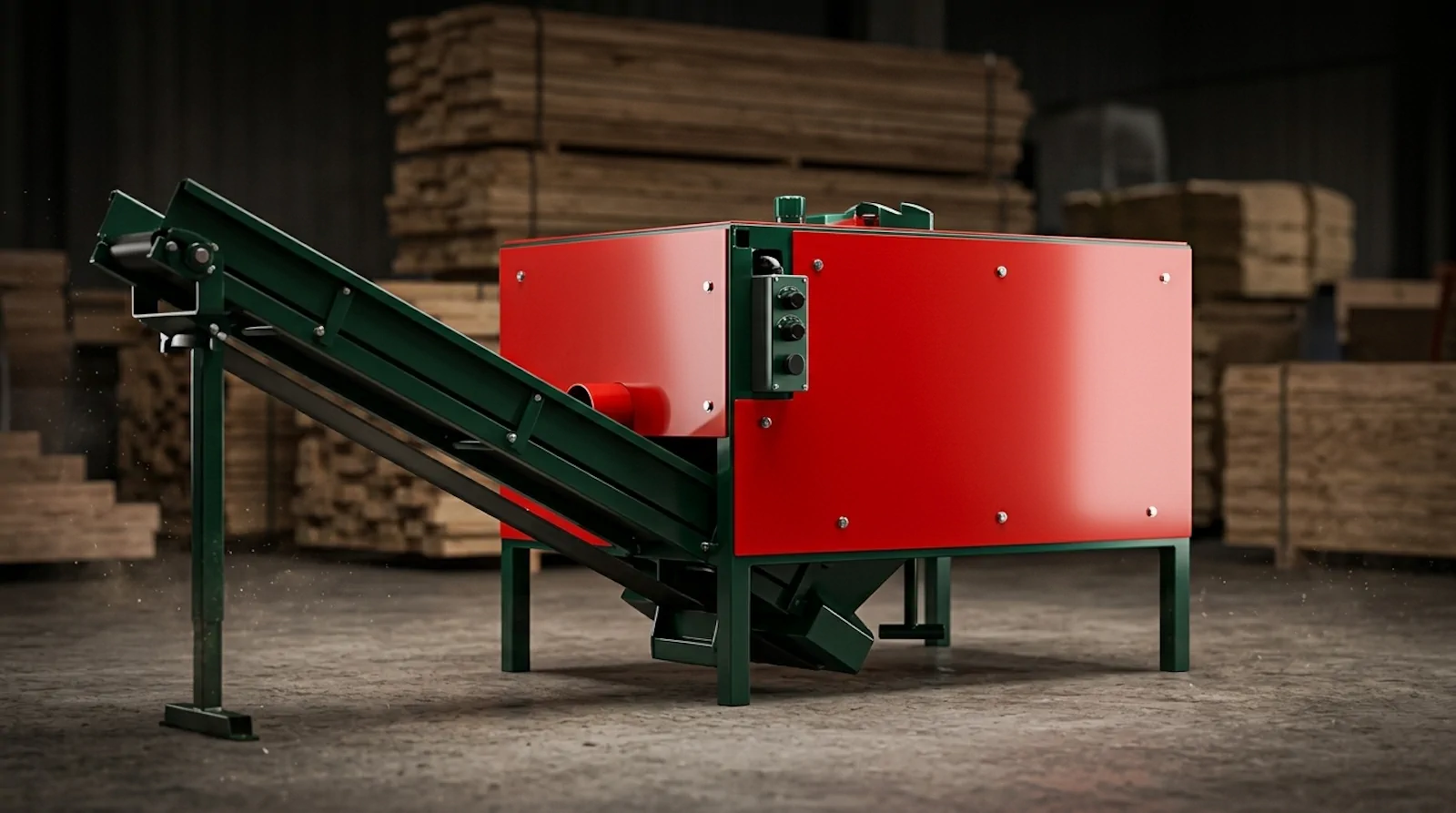

Morgan Block Saw
Block Saw 2019

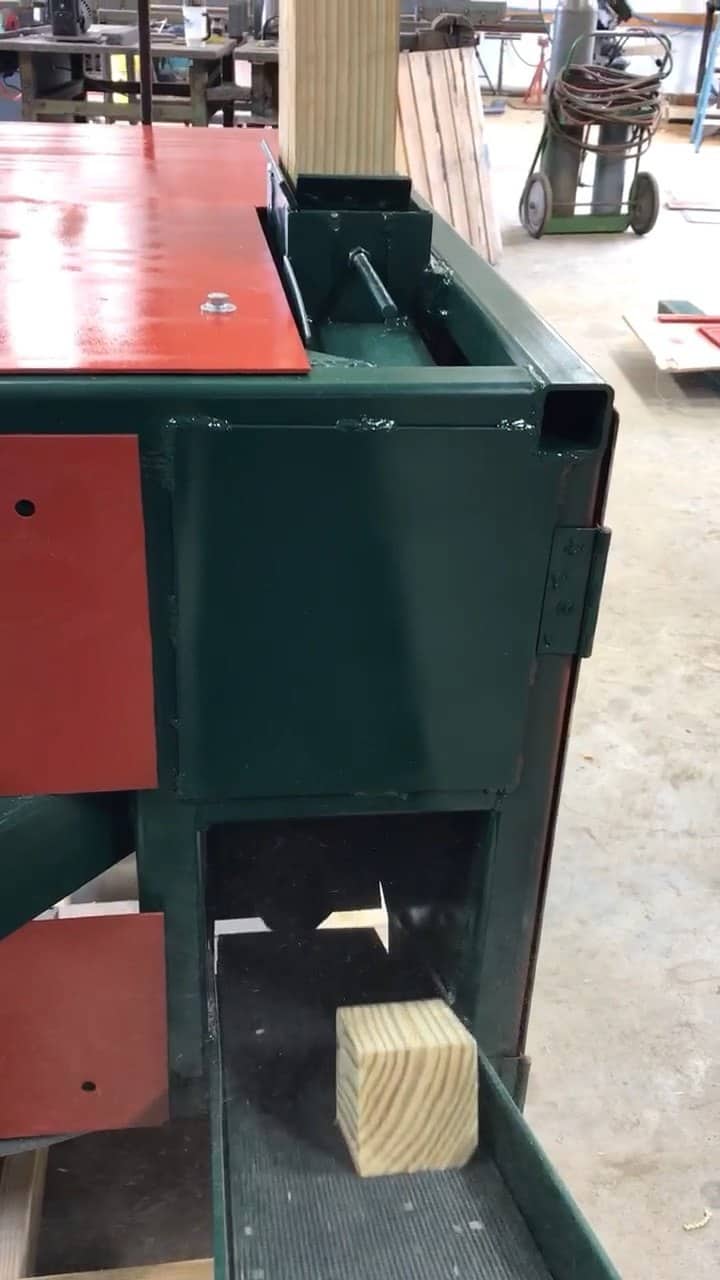

Block Cutter

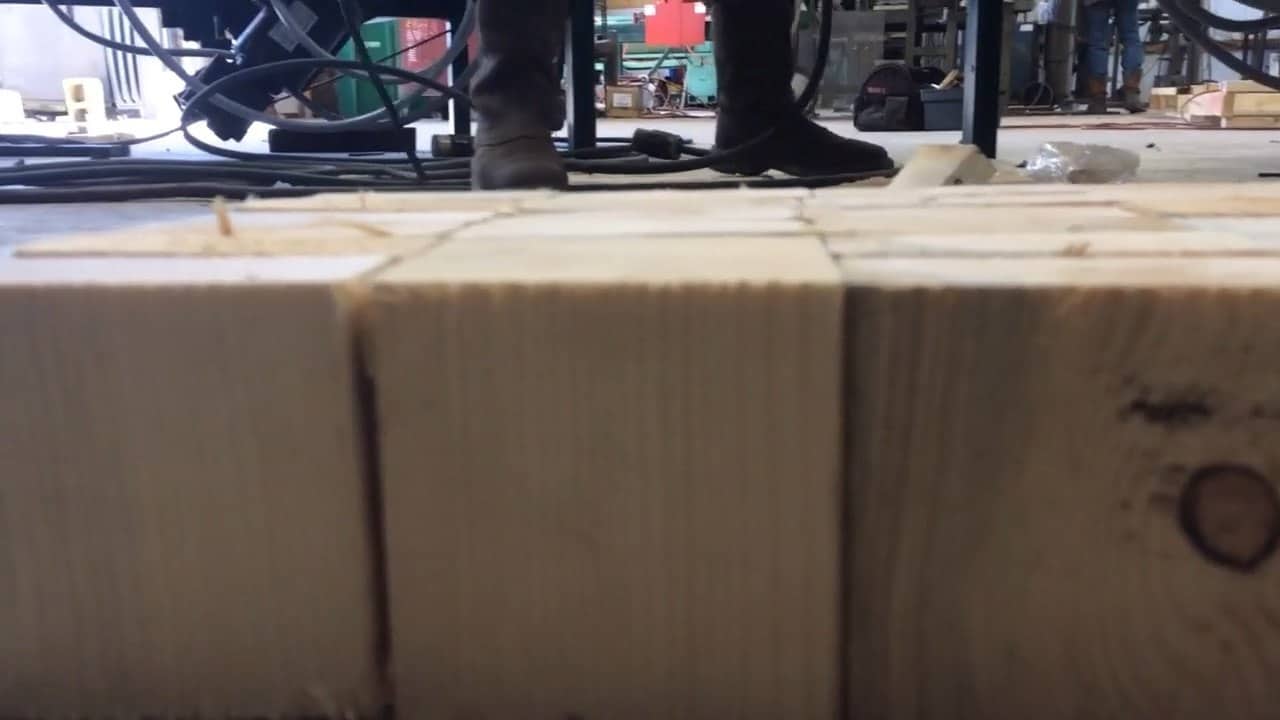

Finished Cut Blocks
Photos
Interested in the Block Saw?
Contact us for specifications and availability.
Frequently Asked Questions
The Morgan Block Saw produces approximately 1,500 to 1,600 blocks per hour with one operator. Actual throughput depends on block size and material.
Yes. The Block Saw is designed for one-man operation. The low-profile loading table keeps material at a comfortable working height, and the cutting cycle is simple enough for a single operator to manage continuously.
Yes. The cutting length is adjustable. Contact us with your required block dimensions and we will confirm the configuration.
Typically 4 to 8 weeks for built-to-order machines. Contact us for a firm delivery date.
Yes. We work with equipment financing partners who understand the lumber and pallet industry. Ask when requesting a quote.
