Chain Bar Cutter
June 21, 2008
The Morgan Chain Bar Cutter makes a great slab saw, log saw, cant cutter or firewood processor. It’s gas-powered so it can be used anywhere.

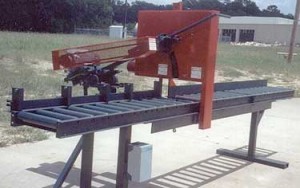

Standard Chop Saw
June 21, 2008
3×3 square tubing frames
15′ of heavy duty rollers
Safe-blade completely enclosed when not in use
22″ blade capable of cutting a 6″x12″
4 adjustable, resetting stops
Powered by a 10 hp triple phase or single motor
Standard gas-powered saw available
Easily moved with forklift
Very compatible with existing systems, can be built to your specifications
Fully Automated Chop Saw
June 21, 2008
One man operation
Handles any size up to 6″x12″
Control accessible from either side
Air system complete with shut-off valve, filter, regulator, etc.
All controls on movable podium
Powered rollers
Powered clamp
Powered head
Air stops
Optional cant turner
Can be built to any height or length
Most efficient when used with the Morgan Descrambler
Block Saw
June 21, 2008
One man operation
2000 cycles per hour
Low profile for easy loading
Well guarded for safety
15 HP 3-phase motor 220/440
22″ blade to cut 4″x6″ up to 12″ long
Includes continuously powered outfeed belt for block removal
Adjustable chute for different size blocks
Easily adjusted & maintained
Baby Chop Saw
June 21, 2008
5′ long
5 HP Motor
4 stops
16″ blade that has a max cut of 4″x6″
ideal for pallet dis-assemblers
